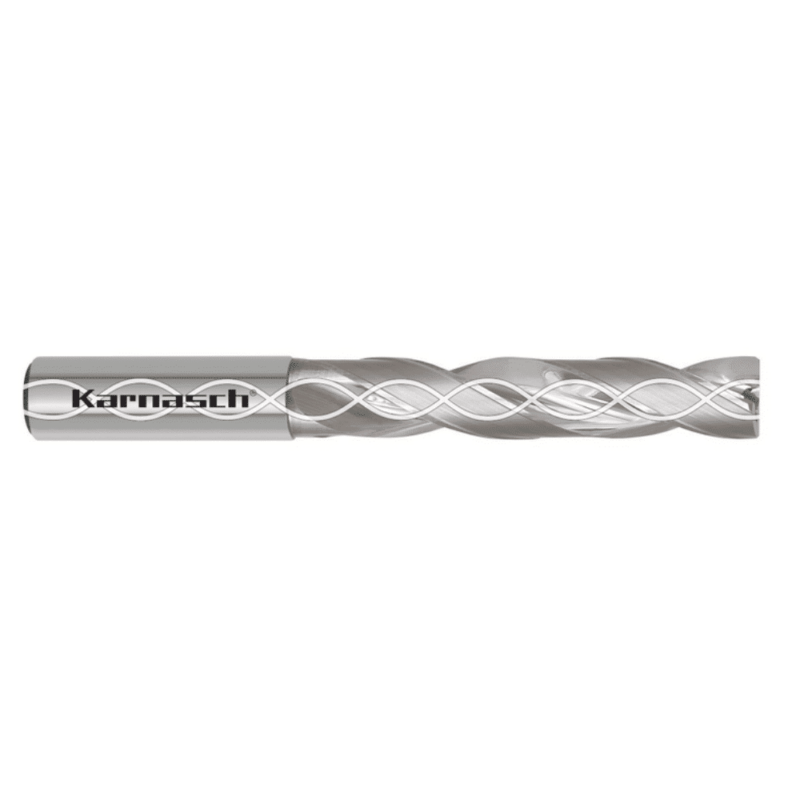

Visokozmogljiv VHM sveder za aluminij KARNASCH – 180°, z notranjim hlajenjem

Out of stock



Visokozmogljiv VHM sveder za aluminij, KARNASCH – 180°, z notranjim hlajenjem – primeren za mehke kovine: aluminij, medenino, baker in plastike.

Rezalni podatki: https://www.misk.si/wp-content/uploads/Visokozmogljiv-VHM-sveder-za-aluminij-KARNASCH-180°-z-notranjim-hlajenjem.pdf

127,86 341,23

Šifra: Ni na voljo Kategorija: Oznake: , ,

Opis

Visokozmogljiv VHM sveder za aluminij, KARNASCH – 180°, z notranjim hlajenjem – primeren za mehke kovine: aluminij, medenino, baker in plastike.

LASTNOSTI:

Material: VHM
Prevleka: /

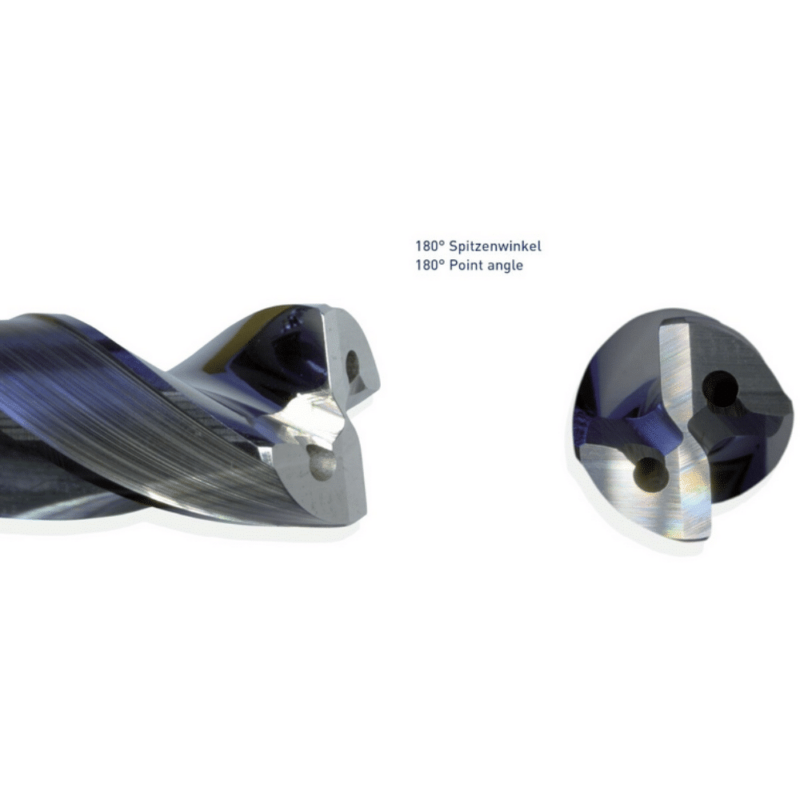

Kot konice: 180°
Nagib spirale: 30°
Število rezil: 2
Vpetje: HAK
Notranje hlajenje: DA
Normativ: KARNASCH NORM
Tip: W
Toleranca: d1=M7; d2=H6
Način odrezovanja: HSC, HPC
ARTIKEL: 220530_P

Katalog: https://www.misk.si/wp-content/uploads/Visokozmogljiv-VHM-sveder-za-aluminij-KARNASCH-180°-z-notranjim-hlajenjem-katalog.pdf

Rezalni podatki: https://www.misk.si/wp-content/uploads/Visokozmogljiv-VHM-sveder-za-aluminij-KARNASCH-180°-z-notranjim-hlajenjem.pdf

file 9 11file 6 11file 12 11file 3 12file 1 11file 2 11file 11 11file 4 11file 10 11file 7 11file 5 12file 8 11

Materiali: Materiali: Materiali:



file misk material aluminij 2file materiali bakerfile misk materiali medenina.jpgfile misk materiali plastike



Materiali: Materiali: Materiali:

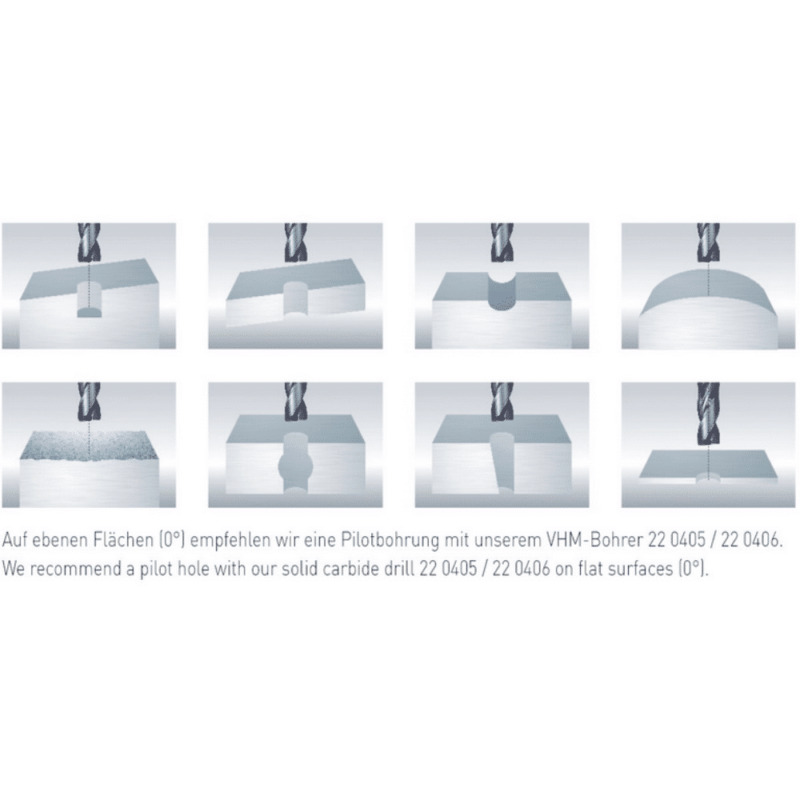

Pri vrtnaju v ploske površine (0°), je priporočeno navrtanje z VHM svedrom 220405 / 220406.

Dodatne podrobnosti

Teža Ni na voljo

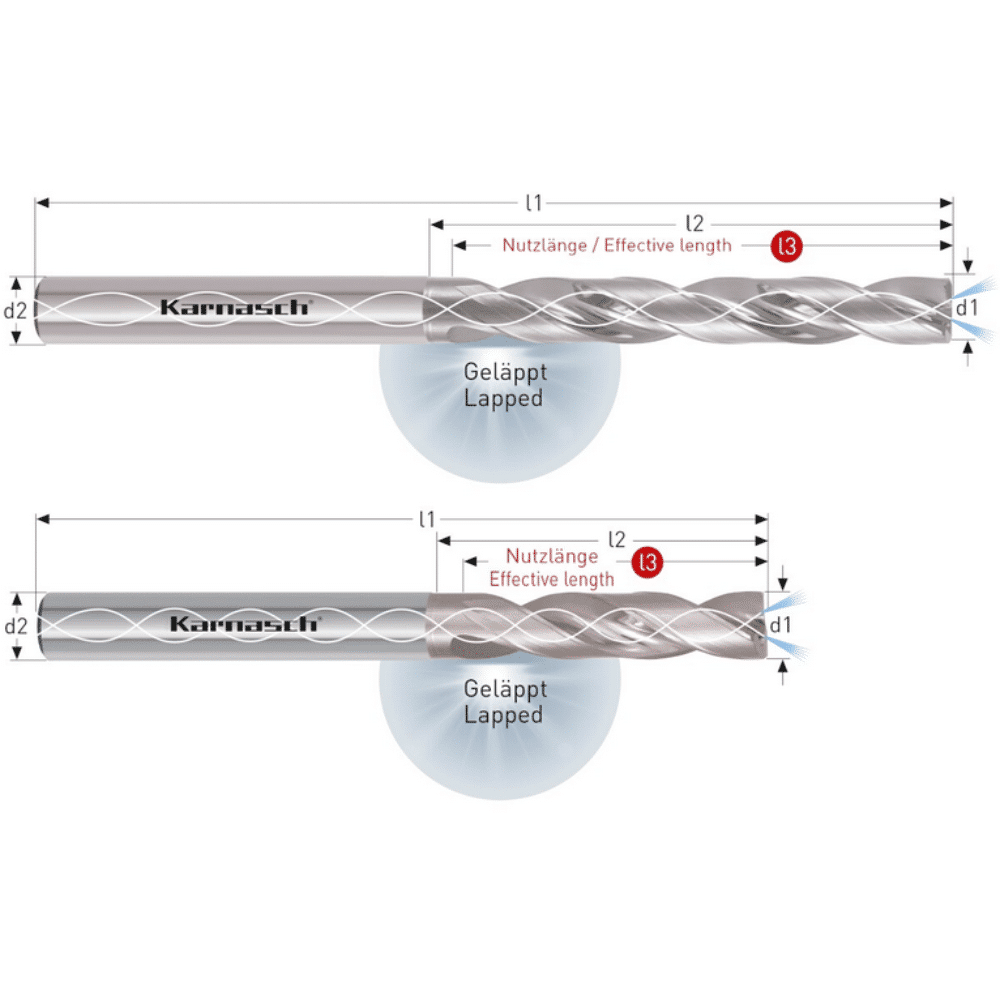

D1 / D2 / L3 / L2 / L1 (mm):

10 x 10 x 35 x 47 x 89mm, 10 x 10 x 49 x 61 x 103mm, 10.1 x 12 x 40 x 53 x 100mm, 10.1 x 12 x 56 x 69 x 116mm, 10.2 x 12 x 40 x 53 x 100mm, 10.2 x 12 x 56 x 69 x 116mm, 10.3 x 12 x 40 x 53 x 100mm, 10.3 x 12 x 56 x 69 x 116mm, 10.5 x 12 x 40 x 53 x 100mm, 10.5 x 12 x 56 x 69 x 116mm, 10.6 x 12 x 40 x 53 x 100mm, 10.6 x 12 x 56 x 69 x 116mm, 10.7 x 12 x 40 x 53 x 100mm, 10.7 x 12 x 56 x 69 x 116mm, 10.8 x 12 x 40 x 53 x 100mm, 10.8 x 12 x 56 x 69 x 116mm, 10.9 x 12 x 40 x 53 x 100mm, 10.9 x 12 x 56 x 69 x 116mm, 11 x 12 x 40 x 53 x 100mm, 11 x 12 x 56 x 69 x 116mm, 11.2 x 12 x 40 x 53 x 100mm, 11.2 x 12 x 56 x 69 x 116mm, 11.5 x 12 x 40 x 53 x 100mm, 11.5 x 12 x 56 x 69 x 116mm, 11.8 x 12 x 40 x 53 x 100mm, 11.8 x 12 x 56 x 69 x 116mm, 12 x 12 x 40 x 53 x 100mm, 12 x 12 x 56 x 69 x 116mm, 3 x 6 x 14 x 20 x 62mm, 3 x 6 x 23 x 28 x 66mm, 3.2 x 6 x 14 x 20 x 62mm, 3.2 x 6 x 23 x 28 x 66mm, 3.3 x 6 x 14 x 20 x 62mm, 3.3 x 6 x 23 x 28 x 66mm, 3.4 x 6 x 14 x 20 x 62mm, 3.4 x 6 x 23 x 28 x 66mm, 3.5 x 6 x 14 x 20 x 62mm, 3.5 x 6 x 23 x 28 x 66mm, 3.7 x 6 x 17 x 20 x 62mm, 3.7 x 6 x 23 x 28 x 66mm, 3.8 x 6 x 17 x 24 x 66mm, 3.8 x 6 x 29 x 36 x 74mm, 3.9 x 6 x 17 x 24 x 66mm, 3.9 x 6 x 29 x 36 x 74mm, 4 x 6 x 17 x 24 x 66mm, 4 x 6 x 29 x 36 x 74mm, 4.2 x 6 x 17 x 24 x 66mm, 4.2 x 6 x 29 x 36 x 74mm, 4.3 x 6 x 17 x 24 x 66mm, 4.3 x 6 x 29 x 36 x 74mm, 4.5 x 6 x 17 x 24 x 66mm, 4.5 x 6 x 29 x 36 x 74mm, 4.65 x 6 x 17 x 24 x 66mm, 4.65 x 6 x 29 x 36 x 74mm, 4.8 x 6 x 20 x 28 x 66mm, 4.8 x 6 x 35 x 44 x 82mm, 5 x 6 x 20 x 28 x 66mm, 5 x 6 x 35 x 44 x 82mm, 5.1 x 6 x 20 x 28 x 66mm, 5.1 x 6 x 35 x 44 x 82mm, 5.2 x 6 x 20 x 28 x 66mm, 5.2 x 6 x 35 x 44 x 82mm, 5.3 x 6 x 20 x 28 x 66mm, 5.3 x 6 x 35 x 44 x 82mm, 5.4 x 6 x 20 x 28 x 66mm, 5.4 x 6 x 35 x 44 x 82mm, 5.5 x 6 x 20 x 28 x 66mm, 5.5 x 6 x 35 x 44 x 82mm, 5.55 x 6 x 20 x 28 x 66mm, 5.55 x 6 x 35 x 44 x 82mm, 5.6 x 6 x 20 x 28 x 66mm, 5.6 x 6 x 35 x 44 x 82mm, 5.7 x 6 x 20 x 28 x 66mm, 5.7 x 6 x 35 x 44 x 82mm, 5.8 x 6 x 20 x 28 x 66mm, 5.8 x 6 x 35 x 44 x 82mm, 6 x 6 x 20 x 28 x 66mm, 6 x 6 x 35 x 44 x 82mm, 6.1 x 8 x 24 x 34 x 79mm, 6.1 x 8 x 43 x 53 x 91mm, 6.2 x 8 x 24 x 34 x 79mm, 6.2 x 8 x 43 x 53 x 91mm, 6.3 x 8 x 24 x 34 x 79mm, 6.3 x 8 x 43 x 53 x 91mm, 6.4 x 8 x 24 x 34 x 79mm, 6.4 x 8 x 43 x 53 x 91mm, 6.5 x 8 x 24 x 34 x 79mm, 6.5 x 8 x 43 x 53 x 91mm, 6.6 x 8 x 24 x 34 x 79mm, 6.6 x 8 x 43 x 53 x 91mm, 6.7 x 8 x 24 x 34 x 79mm, 6.7 x 8 x 43 x 53 x 91mm, 6.8 x 8 x 24 x 34 x 79mm, 6.8 x 8 x 43 x 53 x 91mm, 6.9 x 8 x 24 x 34 x 79mm, 6.9 x 8 x 43 x 53 x 91mm, 7 x 8 x 24 x 34 x 79mm, 7 x 8 x 43 x 53 x 91mm, 7.1 x 8 x 29 x 41 x 79mm, 7.1 x 8 x 43 x 53 x 91mm, 7.2 x 8 x 29 x 41 x 79mm, 7.2 x 8 x 43 x 53 x 91mm, 7.3 x 8 x 29 x 41 x 79mm, 7.3 x 8 x 43 x 53 x 91mm, 7.4 x 8 x 29 x 41 x 79mm, 7.4 x 8 x 43 x 53 x 91mm, 7.5 x 8 x 29 x 41 x 79mm, 7.5 x 8 x 43 x 53 x 91mm, 7.6 x 8 x 29 x 41 x 79mm, 7.6 x 8 x 43 x 53 x 91mm, 7.8 x 8 x 29 x 41 x 79mm, 7.8 x 8 x 43 x 53 x 91mm, 7.9 x 8 x 29 x 41 x 79mm, 7.9 x 8 x 43 x 53 x 91mm, 8 x 8 x 29 x 41 x 79mm, 8 x 8 x 43 x 53 x 91mm, 8.1 x 10 x 35 x 47 x 89mm, 8.1 x 10 x 49 x 61 x 103mm, 8.2 x 10 x 35 x 47 x 89mm, 8.2 x 10 x 49 x 61 x 103mm, 8.3 x 10 x 35 x 47 x 89mm, 8.3 x 10 x 49 x 61 x 103mm, 8.4 x 10 x 35 x 47 x 89mm, 8.4 x 10 x 49 x 61 x 103mm, 8.5 x 10 x 35 x 47 x 89mm, 8.5 x 10 x 49 x 61 x 103mm, 8.6 x 10 x 35 x 47 x 89mm, 8.6 x 10 x 49 x 61 x 103mm, 8.7 x 10 x 35 x 47 x 89mm, 8.7 x 10 x 49 x 61 x 103mm, 8.8 x 10 x 35 x 47 x 89mm, 8.8 x 10 x 49 x 61 x 103mm, 8.9 x 10 x 35 x 47 x 89mm, 8.9 x 10 x 49 x 61 x 103mm, 9 x 10 x 35 x 47 x 89mm, 9 x 10 x 49 x 61 x 103mm, 9.1 x 10 x 35 x 47 x 89mm, 9.1 x 10 x 49 x 61 x 103mm, 9.2 x 10 x 35 x 47 x 89mm, 9.2 x 10 x 49 x 61 x 103mm, 9.3 x 10 x 35 x 47 x 89mm, 9.3 x 10 x 49 x 61 x 103mm, 9.5 x 10 x 35 x 47 x 89mm, 9.5 x 10 x 49 x 61 x 103mm, 9.6 x 10 x 35 x 47 x 89mm, 9.6 x 10 x 49 x 61 x 103mm, 9.7 x 10 x 35 x 47 x 89mm, 9.7 x 10 x 49 x 61 x 103mm, 9.8 x 10 x 35 x 47 x 89mm, 9.8 x 10 x 49 x 61 x 103mm
