Visokozmogljiv trdokovinski sveder KARNASCH – z notranjim hlajenjem, za INOX, HARDOX, MONEL, HASTELLOY

Out of stock

Visokozmogljiv trdokovinski sveder KARNASCH – z notranjim hlajenjem – za nerjaveča jekla, nikljeve zlitine, nikelj-kobalt zlitine, HARDOX, HASTELLOY, MONEL, NIMONIC, AMPCO in nikelj.

Rezalni podatki: https://www.misk.si/wp-content/uploads/Visokozmogljiv-trdokovinski-sveder-Karnasch-z-notranjim-hlajenjem.pdf

35,87 244,49

Šifra: Ni na voljo Kategorija: Oznake: , ,

Opis

Visokozmogljiv trdokovinski sveder KARNASCH – z notranjim hlajenjem – za nerjaveča jekla, nikljeve zlitine, nikelj-kobalt zlitine, HARDOX, HASTELLOY, MONEL, NIMONIC, AMPCO in nikelj.

LASTNOSTI:

Material: VHM
Prevleka: DVC-X1²
Kot konice: 140°
Nagib spirale: 30°
Število rezil: 2
Vpetje: HAK
Notranje hlajenje: DA
Normativ: DIN 6537
Tip: SPECIAL
Toleranca: d1=M7; d2=H6
Način odrezovanja: HSC, HPC
ARTIKEL: 220409_P

Katalog: https://www.misk.si/wp-content/uploads/Visokozmogljiv-trdokovinski-sveder-Karnasch-z-notranjim-hlajenjem-katalog.pdf

Rezalni podatki: https://www.misk.si/wp-content/uploads/Visokozmogljiv-trdokovinski-sveder-Karnasch-z-notranjim-hlajenjem.pdf

file 1 17file 2 18file 3 18file 4 17file 5 18file 6 17file 7 17file 8 17file 9 17file 10 17file 11 15file 12 15



Materiali: Materiali: Materiali:

file materiali legirane kovine 1file misk materiali nikeljfile misk materiali nerjaveca jekla 1file misk materialifile misk materiali monelfile misk materiali hastelloyfile misk material aluminij 3







Dodatne podrobnosti

Teža Ni na voljo

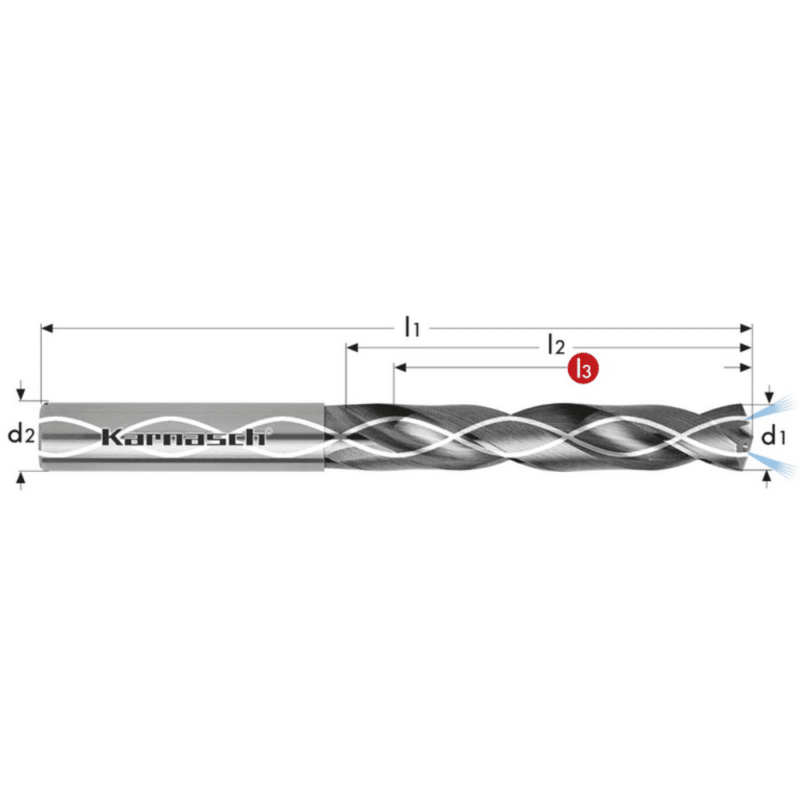

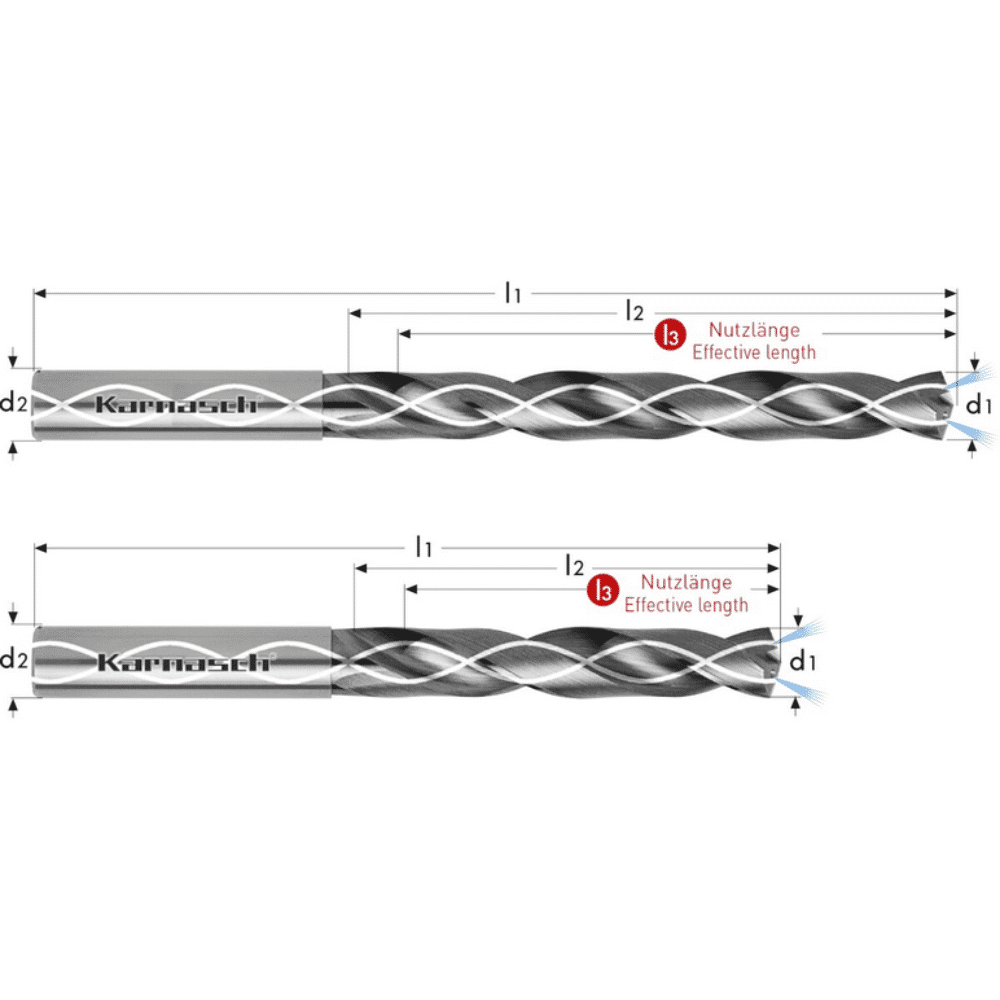

D1 / D2 / L3 / L2 / L1 (mm):

10 x 10 x 49 x 61 x 103mm, 10 x 10 x 80 x 95 x 142mm, 10.1 x 12 x 56 x 71 x 118mm, 10.1 x 12 x 96 x 114 x 162mm, 10.2 x 12 x 56 x 71 x 118mm, 10.2 x 12 x 96 x 114 x 162mm, 10.3 x 12 x 56 x 71 x 118mm, 10.3 x 12 x 96 x 114 x 162mm, 10.4 x 12 x 56 x 71 x 118mm, 10.4 x 12 x 96 x 114 x 162mm, 10.5 x 12 x 56 x 71 x 118mm, 10.5 x 12 x 96 x 114 x 162mm, 10.6 x 12 x 56 x 71 x 118mm, 10.6 x 12 x 96 x 114 x 162mm, 10.7 x 12 x 56 x 71 x 118mm, 10.7 x 12 x 96 x 114 x 162mm, 10.8 x 12 x 56 x 71 x 118mm, 10.8 x 12 x 96 x 114 x 162mm, 10.9 x 12 x 56 x 71 x 118mm, 10.9 x 12 x 96 x 114 x 162mm, 11 x 12 x 56 x 71 x 118mm, 11 x 12 x 96 x 114 x 162mm, 11.1 x 12 x 56 x 71 x 118mm, 11.1 x 12 x 96 x 114 x 162mm, 11.2 x 12 x 56 x 71 x 118mm, 11.2 x 12 x 96 x 114 x 162mm, 11.3 x 12 x 56 x 71 x 118mm, 11.3 x 12 x 96 x 114 x 162mm, 11.4 x 12 x 56 x 71 x 118mm, 11.4 x 12 x 96 x 114 x 162mm, 11.5 x 12 x 56 x 71 x 118mm, 11.5 x 12 x 96 x 114 x 162mm, 11.6 x 12 x 56 x 71 x 118mm, 11.6 x 12 x 96 x 114 x 162mm, 11.7 x 12 x 56 x 71 x 118mm, 11.7 x 12 x 96 x 114 x 162mm, 11.8 x 12 x 56 x 71 x 118mm, 11.8 x 12 x 96 x 114 x 162mm, 11.9 x 12 x 56 x 71 x 118mm, 11.9 x 12 x 96 x 114 x 162mm, 12 x 12 x 56 x 71 x 118mm, 12 x 12 x 96 x 114 x 162mm, 12.5 x 14 x 112 x 133 x 178mm, 12.5 x 14 x 60 x 77 x 124mm, 12.8 x 14 x 112 x 133 x 178mm, 12.8 x 14 x 60 x 77 x 124mm, 13 x 14 x 112 x 133 x 178mm, 13.5 x 14 x 112 x 133 x 178mm, 13.5 x 14 x 60 x 77 x 124mm, 13.8 x 14 x 112 x 133 x 178mm, 13.8 x 14 x 60 x 77 x 124mm, 14 x 14 x 112 x 133 x 178mm, 14 x 14 x 60 x 77 x 124mm, 14.5 x 16 x 128 x 152 x 203mm, 14.5 x 16 x 63 x 83 x 133mm, 14.8 x 16 x 128 x 152 x 203mm, 14.8 x 16 x 63 x 83 x 133mm, 15 x 16 x 128 x 152 x 203mm, 15 x 16 x 63 x 83 x 133mm, 15.5 x 16 x 128 x 152 x 203mm, 16 x 16 x 128 x 152 x 203mm, 16 x 16 x 63 x 83 x 133mm, 3 x 6 x 29 x 34 x 72mm, 3.1 x 6 x 23 x 28 x 66mm, 3.3 x 6 x 23 x 28 x 66mm, 3.4 x 6 x 29 x 34 x 72mm, 3.5 x 6 x 23 x 28 x 66mm, 3.5 x 6 x 29 x 34 x 72mm, 3.6 x 6 x 23 x 28 x 66mm, 3.6 x 6 x 29 x 34 x 72mm, 3.7 x 6 x 23 x 28 x 66mm, 3.7 x 6 x 29 x 34 x 72mm, 3.9 x 6 x 29 x 36 x 74mm, 3.9 x 6 x 36 x 43 x 81mm, 4.1 x 6 x 29 x 36 x 74mm, 4.1 x 6 x 36 x 43 x 81mm, 4.2 x 6 x 29 x 36 x 74mm, 4.2 x 6 x 36 x 43 x 81mm, 4.3 x 6 x 36 x 43 x 81mm, 4.4 x 6 x 36 x 43 x 81mm, 4.5 x 6 x 29 x 36 x 74mm, 4.5 x 6 x 36 x 43 x 81mm, 4.6 x 6 x 29 x 36 x 74mm, 4.6 x 6 x 36 x 43 x 81mm, 4.7 x 6 x 29 x 36 x 74mm, 4.7 x 6 x 36 x 43 x 81mm, 4.8 x 6 x 35 x 44 x 82mm, 4.8 x 6 x 48 x 57 x 95mm, 4.9 x 6 x 48 x 57 x 95mm, 5 x 6 x 48 x 57 x 95mm, 5.1 x 6 x 35 x 44 x 82mm, 5.1 x 6 x 48 x 57 x 95mm, 5.2 x 6 x 35 x 44 x 82mm, 5.2 x 6 x 48 x 57 x 95mm, 5.3 x 6 x 48 x 57 x 95mm, 5.4 x 6 x 35 x 44 x 82mm, 5.4 x 6 x 48 x 57 x 95mm, 5.5 x 6 x 35 x 44 x 82mm, 5.5 x 6 x 48 x 57 x 95mm, 5.6 x 6 x 35 x 44 x 82mm, 5.6 x 6 x 48 x 57 x 95mm, 5.7 x 6 x 35 x 44 x 82mm, 5.7 x 6 x 48 x 57 x 95mm, 5.8 x 6 x 35 x 44 x 82mm, 5.8 x 6 x 48 x 57 x 95mm, 5.9 x 6 x 35 x 44 x 82mm, 5.9 x 6 x 48 x 57 x 95mm, 6 x 6 x 35 x 44 x 82mm, 6 x 6 x 48 x 57 x 95mm, 6.1 x 8 x 43 x 53 x 91mm, 6.1 x 8 x 64 x 76 x 114mm, 6.2 x 8 x 64 x 76 x 114mm, 6.3 x 8 x 43 x 53 x 91mm, 6.3 x 8 x 64 x 76 x 114mm, 6.4 x 8 x 43 x 53 x 91mm, 6.4 x 8 x 64 x 76 x 114mm, 6.5 x 8 x 43 x 53 x 91mm, 6.6 x 8 x 64 x 76 x 114mm, 6.7 x 8 x 43 x 53 x 91mm, 6.7 x 8 x 64 x 76 x 114mm, 6.8 x 8 x 64 x 76 x 114mm, 6.9 x 8 x 43 x 53 x 91mm, 7 x 8 x 43 x 53 x 91mm, 7 x 8 x 64 x 76 x 114mm, 7.1 x 8 x 64 x 76 x 114mm, 7.2 x 8 x 43 x 53 x 91mm, 7.2 x 8 x 64 x 76 x 114mm, 7.3 x 8 x 43 x 53 x 91mm, 7.3 x 8 x 64 x 76 x 114mm, 7.4 x 8 x 43 x 53 x 91mm, 7.4 x 8 x 64 x 76 x 114mm, 7.5 x 8 x 43 x 53 x 91mm, 7.5 x 8 x 64 x 76 x 114mm, 7.6 x 8 x 43 x 53 x 91mm, 7.6 x 8 x 64 x 76 x 114mm, 7.7 x 8 x 43 x 53 x 91mm, 7.7 x 8 x 64 x 76 x 114mm, 7.8 x 8 x 43 x 53 x 91mm, 7.8 x 8 x 64 x 76 x 114mm, 7.9 x 8 x 43 x 53 x 91mm, 7.9 x 8 x 64 x 76 x 114mm, 8 x 8 x 43 x 53 x 91mm, 8 x 8 x 64 x 76 x 114mm, 8.2 x 10 x 49 x 61 x 103mm, 8.2 x 10 x 80 x 95 x 142mm, 8.3 x 10 x 49 x 61 x 103mm, 8.3 x 10 x 80 x 95 x 142mm, 8.4 x 10 x 49 x 61 x 103mm, 8.4 x 10 x 80 x 95 x 142mm, 8.5 x 10 x 80 x 95 x 142mm, 8.7 x 10 x 49 x 61 x 103mm, 8.7 x 10 x 80 x 95 x 142mm, 8.8 x 10 x 80 x 95 x 142mm, 8.9 x 10 x 49 x 61 x 103mm, 8.9 x 10 x 80 x 95 x 142mm, 9.1 x 10 x 49 x 61 x 103mm, 9.1 x 10 x 80 x 95 x 142mm, 9.2 x 10 x 49 x 61 x 103mm, 9.3 x 10 x 49 x 61 x 103mm, 9.3 x 10 x 80 x 95 x 142mm, 9.4 x 10 x 49 x 61 x 103mm, 9.4 x 10 x 80 x 95 x 142mm, 9.5 x 10 x 49 x 61 x 103mm, 9.6 x 10 x 49 x 61 x 103mm, 9.6 x 10 x 80 x 95 x 142mm, 9.7 x 10 x 49 x 61 x 103mm, 9.7 x 10 x 80 x 95 x 142mm, 9.8 x 10 x 49 x 61 x 103mm, 9.8 x 10 x 80 x 95 x 142mm, 9.9 x 10 x 49 x 61 x 103mm, 9.9 x 10 x 80 x 95 x 142mm
