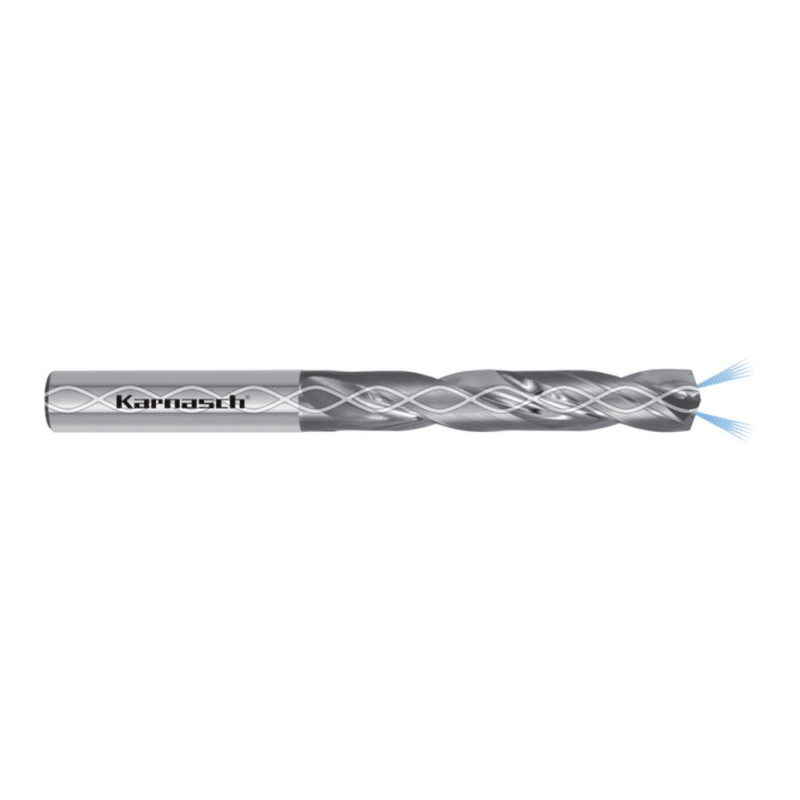

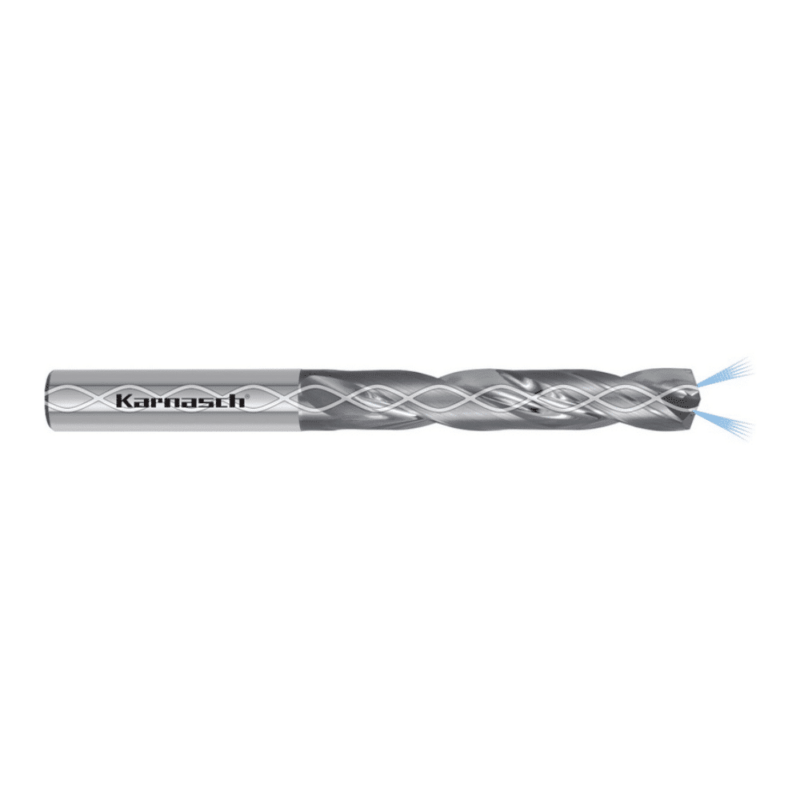

Trdokovinski sveder KARANSCH, za INCONEL – z notranjim hlajenjem, DIN 6537 – 5xD

Out of stock

Trdokovinski sveder KARANSCH, za INCONEL – z notranjim hlajenjem, DIN 6537 – 5xD – za uporabo na legiranih jeklih (INCONEL, HASTELLOY, MONEL, NIMONIC).

Katalog: https://www.misk.si/wp-content/uploads/Trdokovinski-sveder-KARNASCH-za-INCONEL-z-notranjim-hlajenjem-katalog.pdf

90,04 202,03

Šifra: Ni na voljo Kategorija: Oznake: , ,

Opis

Trdokovinski sveder KARANSCH, za INCONEL – z notranjim hlajenjem, DIN 6537 – 5xD – za uporabo na legiranih jeklih (INCONEL, HASTELLOY, MONEL, NIMONIC).

LASTNOSTI:

Material: VHM
Prevleka: DVC-X1²
Kot konice: 140°
Nagib spirale: 30°
Število rezil: 2
Vpetje: HAK
Notranje hlajenje: DA
Normativ: 6537
Tip: SPECIAL
Toleranca: d1=H7, d2=H6
Način odrezovanja: HSC, HPC
ARTIKEL: 220410_P

Katalog: https://www.misk.si/wp-content/uploads/Trdokovinski-sveder-KARNASCH-za-INCONEL-z-notranjim-hlajenjem-katalog.pdf

file 1 20file 2 21file 4 20file 3 21file 9 20file 12 18file 11 18file 5 21file 10 20file 7 20file 6 21file 8 20

Materiali: Materiali: Materiali:



file misk material inconelfile misk materiali hastelloyfile misk materiali monelfile misk materiali nimonic





Dodatne podrobnosti

Teža Ni na voljo

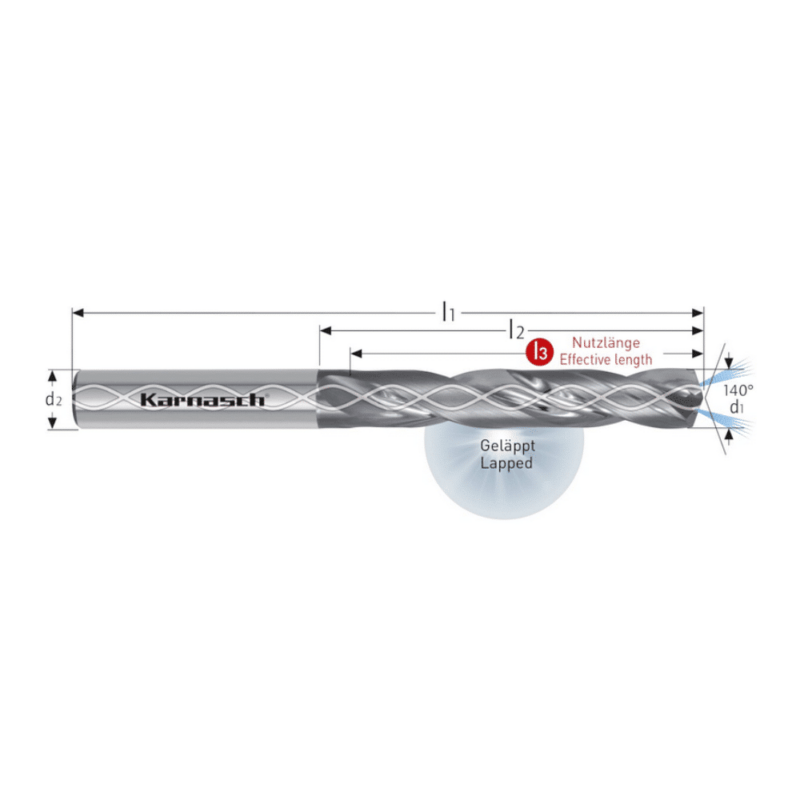

D1 / D2 / L3 / L2 / L1 (mm):

10 x 10 x 49 x 61 x 103mm, 10.1 x 12 x 56 x 69 x 116mm, 10.2 x 12 x 56 x 69 x 116mm, 10.3 x 12 x 56 x 69 x 116mm, 10.5 x 12 x 56 x 69 x 116mm, 10.6 x 12 x 56 x 69 x 116mm, 10.7 x 12 x 56 x 69 x 116mm, 10.8 x 12 x 56 x 69 x 116mm, 10.9 x 12 x 56 x 69 x 116mm, 11 x 12 x 56 x 69 x 116mm, 11.2 x 12 x 56 x 69 x 116mm, 11.5 x 12 x 56 x 69 x 116mm, 11.8 x 12 x 56 x 69 x 116mm, 12 x 12 x 56 x 69 x 116mm, 3 x 6 x 23 x 28 x 66mm, 3.3 x 6 x 23 x 28 x 66mm, 3.4 x 6 x 23 x 28 x 66mm, 3.5 x 6 x 23 x 28 x 66mm, 3.7 x 6 x 23 x 28 x 66mm, 3.8 x 6 x 29 x 36 x 74mm, 3.9 x 6 x 29 x 36 x 74mm, 4 x 6 x 29 x 36 x 74mm, 4.2 x 6 x 29 x 36 x 74mm, 4.3 x 6 x 29 x 36 x 74mm, 4.5 x 6 x 29 x 36 x 74mm, 4.65 x 6 x 29 x 36 x 74mm, 4.8 x 6 x 35 x 44 x 82mm, 5 x 6 x 35 x 44 x 82mm, 5.1 x 6 x 35 x 44 x 82mm, 5.2 x 6 x 35 x 44 x 82mm, 5.3 x 6 x 35 x 44 x 82mm, 5.4 x 6 x 35 x 44 x 82mm, 5.5 x 6 x 35 x 44 x 82mm, 5.55 x 6 x 35 x 44 x 82mm, 5.6 x 6 x 35 x 44 x 82mm, 5.7 x 6 x 35 x 44 x 82mm, 5.8 x 6 x 35 x 44 x 82mm, 6 x 6 x 35 x 44 x 82mm, 6.1 x 8 x 43 x 53 x 91mm, 6.2 x 8 x 43 x 53 x 91mm, 6.3 x 8 x 43 x 53 x 91mm, 6.4 x 8 x 43 x 53 x 91mm, 6.5 x 8 x 43 x 53 x 91mm, 6.6 x 8 x 43 x 53 x 91mm, 6.7 x 8 x 43 x 53 x 91mm, 6.8 x 8 x 43 x 53 x 91mm, 6.9 x 8 x 43 x 53 x 91mm, 7 x 8 x 43 x 53 x 91mm, 7.1 x 8 x 43 x 53 x 91mm, 7.2 x 8 x 43 x 53 x 91mm, 7.3 x 8 x 43 x 53 x 91mm, 7.4 x 8 x 43 x 53 x 91mm, 7.5 x 8 x 43 x 53 x 91mm, 7.6 x 8 x 43 x 53 x 91mm, 7.8 x 8 x 43 x 53 x 91mm, 7.9 x 8 x 43 x 53 x 91mm, 8 x 8 x 43 x 53 x 91mm, 8.1 x 10 x 49 x 61 x 103mm, 8.2 x 10 x 49 x 61 x 103mm, 8.3 x 10 x 49 x 61 x 103mm, 8.4 x 10 x 49 x 61 x 103mm, 8.6 x 10 x 49 x 61 x 103mm, 8.7 x 10 x 49 x 61 x 103mm, 8.8 x 10 x 49 x 61 x 103mm, 8.9 x 10 x 49 x 61 x 103mm, 9 x 10 x 49 x 61 x 103mm, 9.1 x 10 x 49 x 61 x 103mm, 9.2 x 10 x 49 x 61 x 103mm, 9.3 x 10 x 49 x 61 x 103mm, 9.5 x 10 x 49 x 61 x 103mm, 9.6 x 10 x 49 x 61 x 103mm, 9.7 x 10 x 49 x 61 x 103mm, 9.8 x 10 x 49 x 61 x 103mm
