Trdokovinski sveder, 4-fazni <40×D - z notranjim hlajenjem

Out of stock

Trdokovinski sveder, 4-fazni <40×D – z notranjim hlajenjem – za obdelavo jekel – do 1200N/mm², aluminija in sivih litin.

Rezalni podatki: https://www.misk.si/wp-content/uploads/Trdokovinski-sveder-KARNASCH-4-fazni-40xD-z-notranjih-hlajenjem.pdf

162,50 554,86

Šifra: Ni na voljo Kategorija: Oznake: , , , ,

Opis

Trdokovinski sveder, 4-fazni <40×D – za obdelavo jekel – do 1200N/mm², aluminija in sivih litin.

Material: VHM
Prevleka: TiAlN/DVC-X2² HP²
Kot konice: 137°
Nagib spirale: 30°
Število rezil: 2
Vpetje: HAK
Notranje hlajenje: NE
Normativ: KARNASCH NORM
Tip: N
Toleranca: H7/H6
Način odrezovanja: HSC, HPC

Priporočilo: pri vrtanju nad 12xD se priporoča predvrtanje s pilotnim svedrom 220402 ali 220405 – v najkrajši izvedbo.

Za vrtanje pod kotom je priporočljiva uporaba VHM svedra 220404.

Katalog: https://www.misk.si/wp-content/uploads/Trdokovinski-sveder-KARNASCH-4-fazni-40xD-z-notranjih-hlajenjem-katalog.pdf

Rezalni podatki: https://www.misk.si/wp-content/uploads/Trdokovinski-sveder-KARNASCH-4-fazni-40xD-z-notranjih-hlajenjem.pdf

file 1 6file 2 6 file 3 6file 4 6file 5 6file 6 6file 7 6file 8 6file 9 6file 10 6file 11 6file 12 6



Materiali: Materiali: Materiali:

file materiali jekla 2file misk material aluminijfile materiali sive litine



Dodatne podrobnosti

Teža Ni na voljo

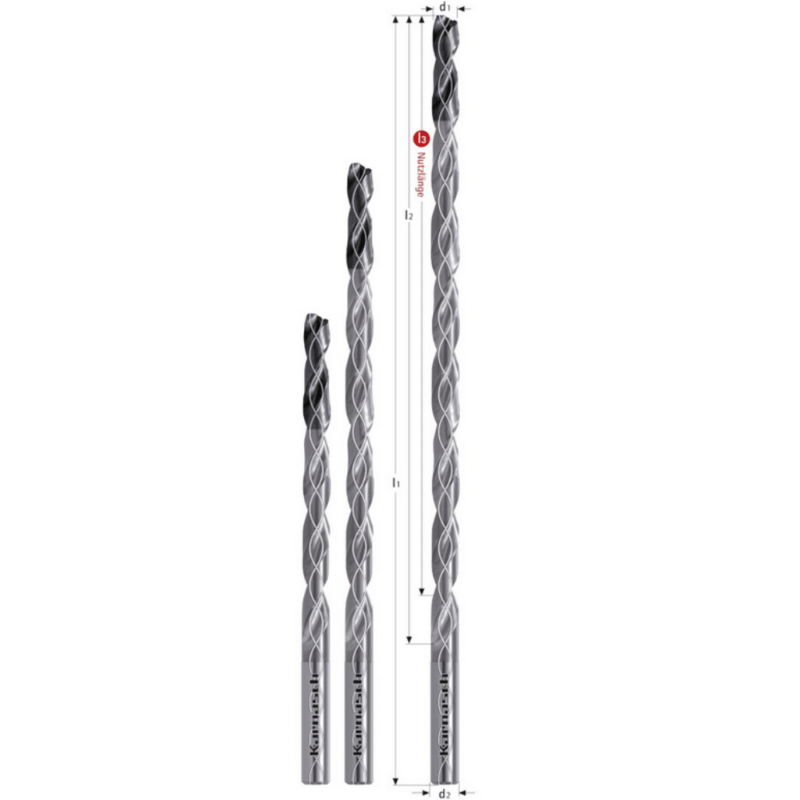

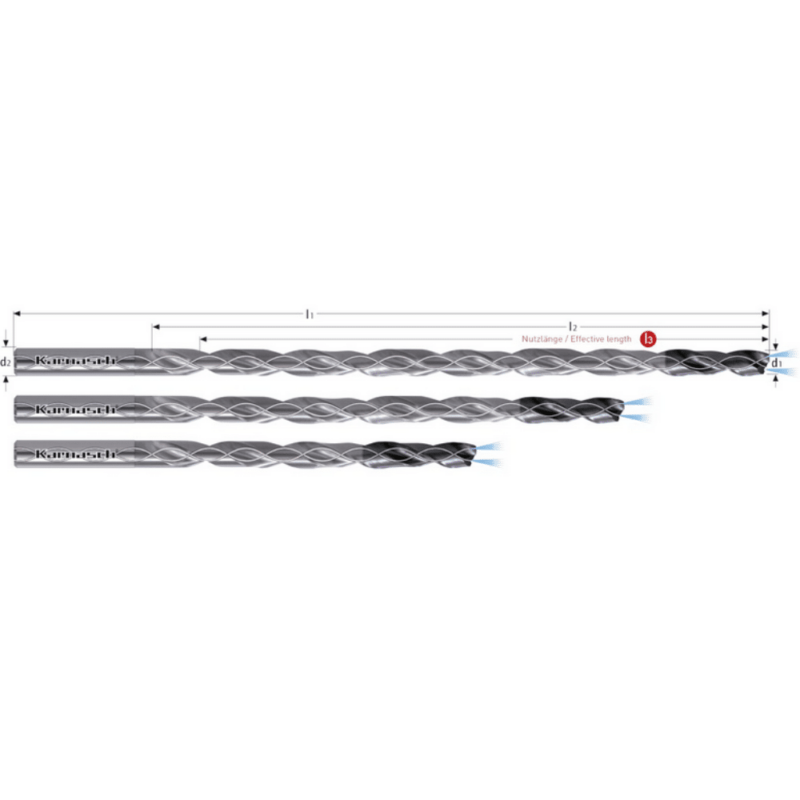

D1 / D2 / L3 / L2 / L1 (mm):

10 x 10 x 110 x 130 x 175mm, 10 x 10 x 150 x 160 x 205mm, 10 x 10 x 180 x 190 x 235mm, 10 x 10 x 220 x 230 x 275mm, 10.1 x 12 x 142 x 155 x 205mm, 10.1 x 12 x 167 x 180 x 230mm, 10.2 x 12 x 142 x 155 x 205mm, 10.2 x 12 x 167 x 180 x 230mm, 10.3 x 12 x 142 x 155 x 205mm, 10.4 x 12 x 142 x 155 x 205mm, 10.5 x 12 x 142 x 155 x 205mm, 10.5 x 12 x 167 x 180 x 230mm, 10.7 x 12 x 147 x 160 x 210mm, 10.8 x 12 x 147 x 160 x 210mm, 11 x 12 x 180 x 194 x 245mm, 11 x 12 x 220 x 234 x 285mm, 11.5 x 12 x 186 x 200 x 250mm, 11.8 x 12 x 186 x 200 x 250mm, 12 x 12 x 180 x 194 x 245mm, 12 x 12 x 220 x 234 x 285mm, 3 x 6 x 30 x 40 x 80mm, 3.1 x 6 x 45 x 50 x 90mm, 3.4 x 6 x 45 x 50 x 90mm, 3.5 x 6 x 144 x 150 x 190mm, 3.5 x 6 x 50 x 60 x 100mm, 3.6 x 6 x 50 x 55 x 100mm, 3.6 x 6 x 53 x 68 x 110mm, 3.7 x 6 x 50 x 55 x 100mm, 3.8 x 6 x 50 x 55 x 100mm, 3.9 x 6 x 53 x 68 x 110mm, 4 x 6 x 120 x 125 x 165mm, 4 x 6 x 160 x 165 x 210mm, 4 x 6 x 85 x 90 x 130mm, 4 x 6 x 95 x 100 x 140mm, 4.1 x 6 x 60 x 65 x 105mm, 4.2 x 6 x 174 x 180 x 225mm, 4.4 x 6 x 60 x 65 x 105mm, 4.4 x 6 x 73 x 78 x 118mm, 4.5 x 6 x 110 x 118 x 160mm, 4.5 x 6 x 184 x 190 x 230mm, 4.5 x 6 x 80 x 88 x 130mm, 4.6 x 6 x 65 x 71 x 110mm, 4.6 x 6 x 79 x 85 x 125mm, 4.7 x 6 x 65 x 71 x 110mm, 4.7 x 6 x 79 x 85 x 125mm, 4.8 x 6 x 65 x 71 x 110mm, 4.8 x 6 x 79 x 85 x 125mm, 4.9 x 6 x 65 x 71 x 110mm, 4.9 x 6 x 79 x 85 x 125mm, 5 x 6 x 120 x 128 x 170mm, 5 x 6 x 90 x 98 x 140mm, 5.1 x 6 x 74 x 80 x 120mm, 5.2 x 6 x 74 x 80 x 120mm, 5.3 x 6 x 74 x 80 x 120mm, 5.3 x 6 x 88 x 95 x 135mm, 5.4 x 6 x 74 x 80 x 120mm, 5.5 x 6 x 130 x 138 x 180mm, 5.5 x 6 x 160 x 168 x 210mm, 5.6 x 6 x 79 x 85 x 125mm, 5.6 x 6 x 97 x 105 x 145mm, 5.7 x 6 x 79 x 85 x 125mm, 5.7 x 6 x 97 x 105 x 145mm, 5.8 x 6 x 79 x 85 x 125mm, 5.8 x 6 x 97 x 105 x 145mm, 5.9 x 6 x 79 x 85 x 125mm, 5.9 x 6 x 97 x 105 x 145mm, 6 x 6 x 70 x 85 x 125mm, 6.2 x 8 x 102 x 110 x 150mm, 6.2 x 8 x 82 x 90 x 130mm, 6.3 x 8 x 102 x 110 x 150mm, 6.3 x 8 x 82 x 90 x 130mm, 6.4 x 8 x 102 x 110 x 150mm, 6.4 x 8 x 82 x 90 x 130mm, 6.5 x 8 x 115 x 130 x 170mm, 6.5 x 8 x 155 x 170 x 210mm, 6.5 x 8 x 195 x 210 x 250mm, 6.5 x 8 x 262 x 270 x 310mm, 6.5 x 8 x 95 x 110 x 150mm, 6.6 x 8 x 112 x 120 x 160mm, 6.6 x 8 x 92 x 100 x 140mm, 6.7 x 8 x 112 x 120 x 160mm, 6.7 x 8 x 92 x 100 x 140mm, 6.8 x 8 x 92 x 100 x 140mm, 6.9 x 8 x 112 x 120 x 160mm, 6.9 x 8 x 92 x 100 x 140mm, 7 x 8 x 125 x 140 x 180mm, 7 x 8 x 165 x 180 x 220mm, 7 x 8 x 210 x 225 x 265mm, 7 x 8 x 95 x 110 x 150mm, 7.1 x 8 x 120 x 130 x 170mm, 7.1 x 8 x 95 x 105 x 150mm, 7.2 x 8 x 100 x 110 x 150mm, 7.3 x 8 x 100 x 110 x 150mm, 7.4 x 8 x 100 x 110 x 150mm, 7.5 x 8 x 100 x 110 x 150mm, 7.5 x 8 x 120 x 130 x 170mm, 7.6 x 8 x 105 x 115 x 155mm, 7.6 x 8 x 125 x 135 x 175mm, 7.7 x 8 x 105 x 115 x 155mm, 7.7 x 8 x 125 x 135 x 175mm, 7.8 x 8 x 105 x 115 x 155mm, 7.8 x 8 x 125 x 135 x 175mm, 7.9 x 8 x 105 x 115 x 155mm, 8 x 8 x 145 x 160 x 200mm, 8 x 8 x 190 x 205 x 245mm, 8 x 8 x 240 x 260 x 300mm, 8 x 8 x 95 x 115 x 155mm, 8.1 x 10 x 108 x 118 x 160mm, 8.1 x 10 x 135 x 145 x 190mm, 8.2 x 10 x 108 x 118 x 160mm, 8.2 x 10 x 135 x 145 x 190mm, 8.3 x 10 x 108 x 118 x 160mm, 8.4 x 10 x 108 x 118 x 160mm, 8.4 x 10 x 135 x 145 x 190mm, 8.5 x 10 x 150 x 160 x 205mm, 8.5 x 10 x 200 x 210 x 255mm, 8.6 x 10 x 118 x 130 x 175mm, 8.6 x 10 x 144 x 155 x 200mm, 8.7 x 10 x 118 x 130 x 175mm, 8.7 x 10 x 144 x 155 x 200mm, 8.8 x 10 x 118 x 130 x 175mm, 8.8 x 10 x 144 x 155 x 200mm, 8.9 x 10 x 118 x 130 x 175mm, 9 x 10 x 110 x 130 x 175mm, 9 x 10 x 118 x 130 x 175mm, 9 x 10 x 200 x 210 x 255mm, 9 x 10 x 250 x 260 x 305mm, 9.1 x 10 x 123 x 135 x 180mm, 9.1 x 10 x 155 x 170 x 210mm, 9.2 x 10 x 123 x 135 x 180mm, 9.2 x 10 x 155 x 170 x 210mm, 9.3 x 10 x 123 x 135 x 180mm, 9.4 x 10 x 123 x 135 x 180mm, 9.5 x 10 x 123 x 135 x 180mm, 9.5 x 10 x 155 x 170 x 210mm, 9.6 x 10 x 130 x 145 x 190mm, 9.6 x 10 x 163 x 175 x 220mm, 9.7 x 10 x 130 x 145 x 190mm, 9.7 x 10 x 163 x 175 x 220mm, 9.8 x 10 x 130 x 145 x 190mm, 9.8 x 10 x 163 x 175 x 220mm, 9.9 x 10 x 130 x 145 x 190mm, 9.9 x 10 x 163 x 175 x 220mm
